k8s新版本如何部署Ingress-nginx controller详细教程方法

k8s 新版本 部署 Ingress-nginx controller 本篇主要记录一下 k8s 新版本 1.23.5 中如何搭建 ingress controller 以及里面的…

k8s 新版本 部署 Ingress-nginx controller

本篇主要记录一下 k8s 新版本 1.23.5 中如何搭建 ingress controller 以及里面的注意项

新版本和老版本 区别有不少 ,坑很多,只能从官网一点点撸

1.环境准备

  • 操作系统:Centos7 (CentOS Linux release 7.9.2009)
  • Master 主节点: 1台 虚拟机
  • Node 计算节点: 2台 虚拟机
  • K8s version:v1.23.5 (选的较新的版本)
  • Docker version:20.10.14

环境和上一篇中 kubeadm 搭建 k8s 的一致

2.概述

下面从 官网摘取的对于 Ingress 的介绍

2.1 什么是 Ingress

Ingress 是对集群中服务的外部访问进行管理的 API 对象,典型的访问方式是 HTTP。Ingress 可以提供负载均衡

Ingress 公开了从集群外部到集群内服务的 HTTP 和 HTTPS 路由。 流量路由由 Ingress 资源上定义的规则控制。

下面是一个将所有流量都发送到同一 Service 的简单 Ingress 示例:
k8s新版本如何部署Ingress-nginx controller详细教程方法插图

但是 仅创建 Ingress 资源本身没有任何效果,需要有对应的 Ingress 控制器 ,你可能需要部署 Ingress 控制器,例如 ingress-nginx。 你可以从许多 Ingress 控制器 中进行选择。

2.2 什么是 Ingress controller

为了让 Ingress 资源工作,集群必须有一个正在运行的 Ingress 控制器。k8s官网维护了 3 个Ingress控制器

目前支持和维护 AWS、 GCE 和 Nginx Ingress 控制器 ,本篇就拿 Ingress-nginx 作为控制器为例 讲解一下如何部署

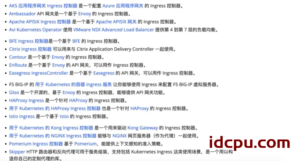

还有一些 社区等提供的 控制器
k8s新版本如何部署Ingress-nginx controller详细教程方法插图1
|3.部署 Ingress-nginx controller
本篇就拿 最常用的 Ingress-nginx 作为 Ingress的控制器,实现k8s 把请求重定向到集群内部(Cluster Ip)服务去

3.1 deploy.yaml 坑点
Ingress-nginx 官网 https://kubernetes.github.io/ingress-nginx/ 提到了 deploy.yaml 文

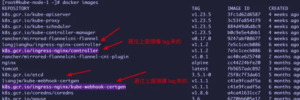

Ingress-nginx 新版本的 depoly.yaml 有些不同,需要拉取下面2个镜像k8s.gcr.io/ingress-nginx/controller:v1.1.2k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1多半是下载不到的,所以需要 自己替换一下 ,可以去docker hub 上找到对应的 镜像文件

k8s新版本如何部署Ingress-nginx controller详细教程方法插图2
总结 坑点

  • 新版本中 提供了 IngressClass ,需要在编写 Ingress 的时候指定
  • Image 加载不到,需要手动去 docker hub 上找其他的 并且修改 deploy.yaml文件
  • 把 ingress-nginx-controller 使用 hostNetwork: true 进行部署 比 NodePort 减少一层转发,但是需要指定 选择打了标签的 node nodeSelector: app: ingress

    3.2 deploy.yaml 样例(我自己修改后的 可以参考)

    #GENERATED FOR K8S 1.20
    apiVersion: v1
    kind: Namespace
    metadata:
      labels:
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
      name: ingress-nginx
    ---
    apiVersion: v1
    automountServiceAccountToken: true
    kind: ServiceAccount
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx
      namespace: ingress-nginx
    ---
    apiVersion: v1
    kind: ServiceAccount
    metadata:
      annotations:
        helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
        helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission
      namespace: ingress-nginx
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: Role
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx
      namespace: ingress-nginx
    rules:
      - apiGroups:
          - ""
        resources:
          - namespaces
        verbs:
          - get
      - apiGroups:
          - ""
        resources:
          - configmaps
          - pods
          - secrets
          - endpoints
        verbs:
          - get
          - list
          - watch
      - apiGroups:
          - ""
        resources:
          - services
        verbs:
          - get
          - list
          - watch
      - apiGroups:
          - networking.k8s.io
        resources:
          - ingresses
        verbs:
          - get
          - list
          - watch
      - apiGroups:
          - networking.k8s.io
        resources:
          - ingresses/status
        verbs:
          - update
      - apiGroups:
          - networking.k8s.io
        resources:
          - ingressclasses
        verbs:
          - get
          - list
          - watch
      - apiGroups:
          - ""
        resourceNames:
          - ingress-controller-leader
        resources:
          - configmaps
        verbs:
          - get
          - update
      - apiGroups:
          - ""
        resources:
          - configmaps
        verbs:
          - create
      - apiGroups:
          - ""
        resources:
          - events
        verbs:
          - create
          - patch
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: Role
    metadata:
      annotations:
        helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
        helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission
      namespace: ingress-nginx
    rules:
      - apiGroups:
          - ""
        resources:
          - secrets
        verbs:
          - get
          - create
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRole
    metadata:
      labels:
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx
    rules:
      - apiGroups:
          - ""
        resources:
          - configmaps
          - endpoints
          - nodes
          - pods
          - secrets
          - namespaces
        verbs:
          - list
          - watch
      - apiGroups:
          - ""
        resources:
          - nodes
        verbs:
          - get
      - apiGroups:
          - ""
        resources:
          - services
        verbs:
          - get
          - list
          - watch
      - apiGroups:
          - networking.k8s.io
        resources:
          - ingresses
        verbs:
          - get
          - list
          - watch
      - apiGroups:
          - ""
        resources:
          - events
        verbs:
          - create
          - patch
      - apiGroups:
          - networking.k8s.io
        resources:
          - ingresses/status
        verbs:
          - update
      - apiGroups:
          - networking.k8s.io
        resources:
          - ingressclasses
        verbs:
          - get
          - list
          - watch
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRole
    metadata:
      annotations:
        helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
        helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission
    rules:
      - apiGroups:
          - admissionregistration.k8s.io
        resources:
          - validatingwebhookconfigurations
        verbs:
          - get
          - update
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: RoleBinding
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx
      namespace: ingress-nginx
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: Role
      name: ingress-nginx
    subjects:
      - kind: ServiceAccount
        name: ingress-nginx
        namespace: ingress-nginx
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: RoleBinding
    metadata:
      annotations:
        helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
        helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission
      namespace: ingress-nginx
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: Role
      name: ingress-nginx-admission
    subjects:
      - kind: ServiceAccount
        name: ingress-nginx-admission
        namespace: ingress-nginx
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRoleBinding
    metadata:
      labels:
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: ClusterRole
      name: ingress-nginx
    subjects:
      - kind: ServiceAccount
        name: ingress-nginx
        namespace: ingress-nginx
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRoleBinding
    metadata:
      annotations:
        helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
        helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: ClusterRole
      name: ingress-nginx-admission
    subjects:
      - kind: ServiceAccount
        name: ingress-nginx-admission
        namespace: ingress-nginx
    ---
    apiVersion: v1
    data:
      allow-snippet-annotations: "true"
    kind: ConfigMap
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-controller
      namespace: ingress-nginx
    ---
    apiVersion: v1
    kind: Service
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-controller
      namespace: ingress-nginx
    spec:
      externalTrafficPolicy: Local
      ipFamilies:
        - IPv4
      ipFamilyPolicy: SingleStack
      ports:
        - appProtocol: http
          name: http
          port: 80
          protocol: TCP
          targetPort: http
        - appProtocol: https
          name: https
          port: 443
          protocol: TCP
          targetPort: https
      selector:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
      type: LoadBalancer
    ---
    apiVersion: v1
    kind: Service
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-controller-admission
      namespace: ingress-nginx
    spec:
      ports:
        - appProtocol: https
          name: https-webhook
          port: 443
          targetPort: webhook
      selector:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
      type: ClusterIP
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-controller
      namespace: ingress-nginx
    spec:
      minReadySeconds: 0
      revisionHistoryLimit: 10
      selector:
        matchLabels:
          app.kubernetes.io/component: controller
          app.kubernetes.io/instance: ingress-nginx
          app.kubernetes.io/name: ingress-nginx
      template:
        metadata:
          labels:
            app.kubernetes.io/component: controller
            app.kubernetes.io/instance: ingress-nginx
            app.kubernetes.io/name: ingress-nginx
        spec:
          hostNetwork: true #修改  ingress-nginx-controller 为 hostNetwork模式
          nodeSelector: #选择 node label 中有 app=ingress的节点进行部署
            app: ingress
          containers:
            - args:
                - /nginx-ingress-controller
                - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
                - --election-id=ingress-controller-leader
                - --controller-class=k8s.io/ingress-nginx
                - --ingress-class=nginx
                - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
                - --validating-webhook=:8443
                - --validating-webhook-certificate=/usr/local/certificates/cert
                - --validating-webhook-key=/usr/local/certificates/key
              env:
                - name: POD_NAME
                  valueFrom:
                    fieldRef:
                      fieldPath: metadata.name
                - name: POD_NAMESPACE
                  valueFrom:
                    fieldRef:
                      fieldPath: metadata.namespace
                - name: LD_PRELOAD
                  value: /usr/local/lib/libmimalloc.so
              image: k8s.gcr.io/ingress-nginx/controller:v1.1.2 #修改镜像地址
              imagePullPolicy: IfNotPresent
              lifecycle:
                preStop:
                  exec:
                    command:
                      - /wait-shutdown
              livenessProbe:
                failureThreshold: 5
                httpGet:
                  path: /healthz
                  port: 10254
                  scheme: HTTP
                initialDelaySeconds: 10
                periodSeconds: 10
                successThreshold: 1
                timeoutSeconds: 1
              name: controller
              ports:
                - containerPort: 80
                  name: http
                  protocol: TCP
                - containerPort: 443
                  name: https
                  protocol: TCP
                - containerPort: 8443
                  name: webhook
                  protocol: TCP
              readinessProbe:
                failureThreshold: 3
                httpGet:
                  path: /healthz
                  port: 10254
                  scheme: HTTP
                initialDelaySeconds: 10
                periodSeconds: 10
                successThreshold: 1
                timeoutSeconds: 1
              resources:
                requests:
                  cpu: 100m
                  memory: 90Mi
              securityContext:
                allowPrivilegeEscalation: true
                capabilities:
                  add:
                    - NET_BIND_SERVICE
                  drop:
                    - ALL
                runAsUser: 101
              volumeMounts:
                - mountPath: /usr/local/certificates/
                  name: webhook-cert
                  readOnly: true
          dnsPolicy: ClusterFirst
          nodeSelector:
            kubernetes.io/os: linux
          serviceAccountName: ingress-nginx
          terminationGracePeriodSeconds: 300
          volumes:
            - name: webhook-cert
              secret:
                secretName: ingress-nginx-admission
    ---
    apiVersion: batch/v1
    kind: Job
    metadata:
      annotations:
        helm.sh/hook: pre-install,pre-upgrade
        helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission-create
      namespace: ingress-nginx
    spec:
      template:
        metadata:
          labels:
            app.kubernetes.io/component: admission-webhook
            app.kubernetes.io/instance: ingress-nginx
            app.kubernetes.io/managed-by: Helm
            app.kubernetes.io/name: ingress-nginx
            app.kubernetes.io/part-of: ingress-nginx
            app.kubernetes.io/version: 1.1.2
            helm.sh/chart: ingress-nginx-4.0.18
          name: ingress-nginx-admission-create
        spec:
          containers:
            - args:
                - create
                - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
                - --namespace=$(POD_NAMESPACE)
                - --secret-name=ingress-nginx-admission
              env:
                - name: POD_NAMESPACE
                  valueFrom:
                    fieldRef:
                      fieldPath: metadata.namespace
              image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1 #修改镜像地址
              imagePullPolicy: IfNotPresent
              name: create
              securityContext:
                allowPrivilegeEscalation: false
          nodeSelector:
            kubernetes.io/os: linux
          restartPolicy: OnFailure
          securityContext:
            fsGroup: 2000
            runAsNonRoot: true
            runAsUser: 2000
          serviceAccountName: ingress-nginx-admission
    ---
    apiVersion: batch/v1
    kind: Job
    metadata:
      annotations:
        helm.sh/hook: post-install,post-upgrade
        helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission-patch
      namespace: ingress-nginx
    spec:
      template:
        metadata:
          labels:
            app.kubernetes.io/component: admission-webhook
            app.kubernetes.io/instance: ingress-nginx
            app.kubernetes.io/managed-by: Helm
            app.kubernetes.io/name: ingress-nginx
            app.kubernetes.io/part-of: ingress-nginx
            app.kubernetes.io/version: 1.1.2
            helm.sh/chart: ingress-nginx-4.0.18
          name: ingress-nginx-admission-patch
        spec:
          containers:
            - args:
                - patch
                - --webhook-name=ingress-nginx-admission
                - --namespace=$(POD_NAMESPACE)
                - --patch-mutating=false
                - --secret-name=ingress-nginx-admission
                - --patch-failure-policy=Fail
              env:
                - name: POD_NAMESPACE
                  valueFrom:
                    fieldRef:
                      fieldPath: metadata.namespace
              image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1 #修改镜像地址
              imagePullPolicy: IfNotPresent
              name: patch
              securityContext:
                allowPrivilegeEscalation: false
          nodeSelector:
            kubernetes.io/os: linux
          restartPolicy: OnFailure
          securityContext:
            fsGroup: 2000
            runAsNonRoot: true
            runAsUser: 2000
          serviceAccountName: ingress-nginx-admission
    ---
    apiVersion: networking.k8s.io/v1
    kind: IngressClass
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: nginx
    spec:
      controller: k8s.io/ingress-nginx
    ---
    apiVersion: admissionregistration.k8s.io/v1
    kind: ValidatingWebhookConfiguration
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission
    webhooks:
      - admissionReviewVersions:
          - v1
        clientConfig:
          service:
            name: ingress-nginx-controller-admission
            namespace: ingress-nginx
            path: /networking/v1/ingresses
        failurePolicy: Fail
        matchPolicy: Equivalent
        name: validate.nginx.ingress.kubernetes.io
        rules:
          - apiGroups:
              - networking.k8s.io
            apiVersions:
              - v1
            operations:
              - CREATE
              - UPDATE
            resources:
              - ingresses
        sideEffects: None




    4.部署 Ingress-nginx

    4.1 准备工作
    给 node2 节点打了app=ingress标签,因为上面的ingress-nginx-controller 使用的是 hostNetwork 模式(只会放pod真实pod 的 端口) + nodeSelector
    kubectl label node kubec-node-2 app=ingress

    k8s新版本如何部署Ingress-nginx controller详细教程方法插图3

    4.2 部署 kubect apply -f

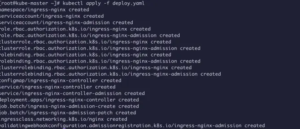

    kubectl apply -f deploy.yaml #通过 kubectl apply 命令进行部署 ,前提是镜像准备好,否则GG
    k8s新版本如何部署Ingress-nginx controller详细教程方法插图4

    4.3 查看状态
    kubectl get all -n ingress-nginx #查看 ingress-nginx namespace的 部署情
    k8s新版本如何部署Ingress-nginx controller详细教程方法插图5

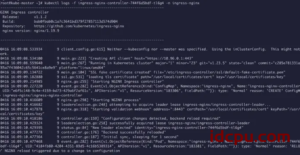

    kubectl logs -f ingress-nginx-controller-744f6d5bdf-tl6g4 -n ingress-nginx # 查看 ingress-nginx-controller 的 日志情况
    k8s新版本如何部署Ingress-nginx controller详细教程方法插图6

    4.4 测试访问

    直接访问 kube-node-2的 ip 即可,因为 ingress-nginx-controller 默认是 监听 80端口,由于上面的 nodeSelector: #选择 node label 中有 app=ingress的节点进行部署 ,而 kube-node-2 是被打了标签的节点node
    k8s新版本如何部署Ingress-nginx controller详细教程方法插图7

    可以看到 其实就是一个 nginx

    5.部署一个 tomcat 测试 Ingress-nginx

    通过部署一个tomcat ,测试Ingress-nginx的代理 是否生效

    5.1 编写 deploy-tomcat.yaml

    主要编写

    • Deployment 部署tomcat:8.0-alpine,
    • Service 暴露 tomcat pod
    • 一个 Ingress 资源它规定 访问 tomcat.demo.com 这个域名的 所有请求 / 都转发到 tomcat-demo Service 上

      IngressClass 新版本提供的资源 ,用于在定义 Ingress资源的时候 指定,在集群中有多个 Ingress controller 的时候很有用处

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: tomcat-demo
      spec:
        selector:
          matchLabels:
            app: tomcat-demo
        replicas: 1
        template:
          metadata:
            labels:
              app: tomcat-demo
          spec:
            containers:
            - name: tomcat-demo
              image: tomcat:8.0-alpine
              ports:
              - containerPort: 8080
      ---

      apiVersion: v1
      kind: Service
      metadata:
        name: tomcat-demo
      spec:
        selector:
          app: tomcat-demo #选择 tomcat-demo pod
        ports:
        - port: 80 #对外暴露 80 端口
          protocol: TCP
          targetPort: 8080 # tomcat 端口


      ---

      apiVersion: networking.k8s.io/v1
      kind: Ingress
      metadata:
        name: tomcat-demo
      spec:
        defaultBackend:
          service:
            name: default-http-backend #!!! 指定 默认的backend服务
            port:
            	number: 80
        ingressClassName: nginx #!!!重点 需要指定 哪个 IngressClass 可以看上面的 deploy.yaml 最后定义的
        rules:
        - host: tomcat.demo.com #所有的  tomcat.demo.com请求都转发到  Service tomcat-demo
          http:
            paths:
            - pathType: Prefix
              path: "/"
              backend:
                service:
                  name: tomcat-demo
                  port:
                    number: 80

      ---
      #定义一个 default-http-backend 当没有被Ingress规定的请求 负载给 它
      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: default-http-backend
        labels:
          app: default-http-backend
      spec:
        replicas: 1
        selector:
          matchLabels:
            app: default-http-backend
        template:
          metadata:
            labels:
              app: default-http-backend
          spec:
            terminationGracePeriodSeconds: 60
            containers:
            - name: default-http-backend
              # Any image is permissible as long as:
              # 1. It serves a 404 page at /
              # 2. It serves 200 on a /healthz endpoint
              image: registry.cn-hangzhou.aliyuncs.com/google_containers/defaultbackend:1.4
              livenessProbe:
                httpGet:
                  path: /healthz
                  port: 8080
                  scheme: HTTP
                initialDelaySeconds: 30
                timeoutSeconds: 5
              ports:
              - containerPort: 8080
              resources:
                limits:
                  cpu: 10m
                  memory: 20Mi
                requests:
                  cpu: 10m
                  memory: 20Mi
      ---

      apiVersion: v1
      kind: Service
      metadata:
        name: default-http-backend
        labels:
          app: default-http-backend
      spec:
        ports:
        - port: 80
          targetPort: 8080
        selector:
          app: default-http-backend



      5.2 部署 tomcat + ingress + default-http-backend
      部署上面的文件 即可
      k8s新版本如何部署Ingress-nginx controller详细教程方法插图8
      查看 部署情况 可以看到都是Running 了
      k8s新版本如何部署Ingress-nginx controller详细教程方法插图9

      5.3 测试 通过Ingress-nginx 能否访问到tomcat

      由于我们 ingress 资源配置的 域名 是 tomcat.demo.com ,所以我需要把它添加到 宿主机的hosts 文件中,如下
      k8s新版本如何部署Ingress-nginx controller详细教程方法插图10

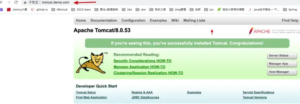

      那么按照预期,当我访问 tomcat.demo.com 的时候其实就是访问 192.168.56.22 上的 ingress-nginx-controller 这个nginx,那么根据 ingress 的 资源的设定 它会把请求 转发到 Service tomcat-demo 上,从而访问到 tomcat 界面

      当我访问 api.demo.com 的时候 由于没有对这个域名进行处理 那么会默认把请求转发到 default-http-backend 上
      k8s新版本如何部署Ingress-nginx controller详细教程方法插图11
      k8s新版本如何部署Ingress-nginx controller详细教程方法插图12

      总结

      至此在k8s 1.23.5上 已经成功部署了 Ingress-nginx ,并且通过部署一个tomcat服务测试了 Ingress-nginx 已经代理成功了,由于不管是 k8s 新版本和 Ingress-nginx 新版本都有些变化 所有很些坑,是我从官网不断摸索的,下面总结一下坑点

      • image 镜像需要自己从docker hub 上准备好 ,或者直接修改Ingress-nginx 的 deploy.yaml

        k8s.gcr.io/ingress-nginx/controller:v1.1.2

        k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1

      • 重要!新版本中 提供了 IngressClass ,需要在编写 Ingress 的时候指定
      • 把 ingress-nginx-controller 使用 hostNetwork: true 进行部署 比 NodePort 减少一层转发,但是需要指定 选择打了标签的 node nodeSelector: app: ingress
      • 通过 Ingress spec.defaultBackend 指定 默认服务,并且需要保持在同一个 namespace
        spec:
        	defaultBackend:
            service:
              name: default-http-backend #!!! 指定 默认的backend服务
              port:
              	number: 80

      • vscode k8s 插件 快捷生成Depoyment 的时候 自定添加了资源限制,导致部署tomcat的时候 总是启动不起来..

        导致tomcat pod 状态 CrashLoopBackOff,从而导致 通过 Ingress-nginx 无法访问到tomcat

        resources:
          limits:
            memory: "128Mi" #不够部署tomcat 内存
            cpu: "500m"

免责声明:文章内容不代表本站立场,本站不对其内容的真实性、完整性、准确性给予任何担保、暗示和承诺,仅供读者参考,文章版权归原作者所有。如本文内容影响到您的合法权益(内容、图片等),请及时联系本站,我们会及时删除处理。

作者: 小小编

为您推荐

dell R710 更换raid卡后,raid卡信息没有了,处理方案

dell R710 更换raid卡后,raid卡信息没有了,处理方案

1.将一台服务器(A)的硬盘依次拔出,按相同顺序插入另一台同样配置的服务器(B) 2.启动服务器(B) 3.按提示键盘按...
PL SQL Developer 13连接Oracle数据库并导出数据详细操作教程方法

PL SQL Developer 13连接Oracle数据库并导出数据详细操作教程方法

下载 并安装 PL SQL Developer 13,默认支持中文语言 ========================...
关于一条sql语句在mysql中是如何执行的

关于一条sql语句在mysql中是如何执行的

最近开始在学习mysql相关知识,自己根据学到的知识点,根据自己的理解整理分享出来,本篇文章会分析下一个sql语句在my...
关于sql注入姿势总结(mysql)

关于sql注入姿势总结(mysql)

前言 学习了sql注入很长时间,但是仍然没有系统的了解过,这次总结一波,用作学习的资料。 从注入方法分:基于报错、基于布...
关于Oracle SQL外连接

关于Oracle SQL外连接

SQL提供了多种类型的连接方式,它们之间的区别在于:从相互交叠的不同数据集合中选择用于连接的行时所采用的方法不同。 连接...

发表回复

返回顶部
